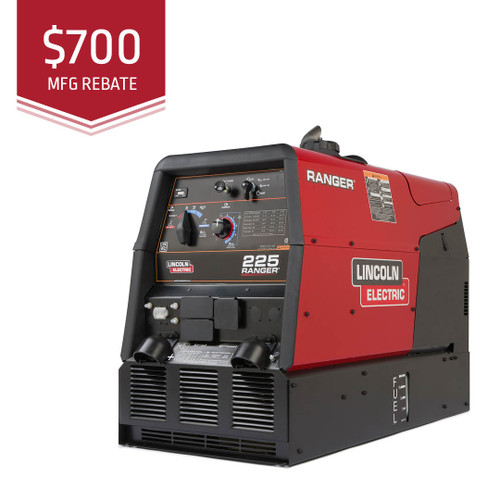

Ranger 225 Engine Driven Welder (Kohler) (K2857-1)

Write a Review


Download Spec Sheet

Standard welder/generator with great stick capabilities and AC generator output for the construction, farm, ranch, and maintenance welding applications.


  • Arm Yourself With the Right Welder - The Ranger 225 is a multi-process, engine-driven welder designed for a variety of processes - stick, TIG, MIG or flux cored. Whatever the process or application, arm yourself to get the job done and get it done right the first time.
    • Totally enclosed case protects the engine and limits noise
    • Smooth DC welding output
    • 10,500 Watts AC generator power
  • Totally Enclosed Case
    • Engine is fully protected.
    • 3 service access doors.
    • Low noise - 76.4 dBA sound level at 23 ft. (7 m). 100.7 dB sound power (Lwa) at rated output.
  • Versatile DC Welding
    • Smooth DC welding output for a broad range of stick electrode types.
    • MIG, flux-cored and TIG capable (with optional equipment).
  • 10,500 Watts Peak Single-Phase AC Generator Power
    • 9,000 watts continuous power for generator output, plasma cutter or inverter welder.
    • Power-up lights, grinder, and power tools.
  • 23 HP Kohler Gasoline Engine
    • 2 cylinder, 4 cycle overhead valve air-cooled design.
    • Oil drain extension for easy oil changes.
    • 12 gallon tank for extended run times.
    • Only 1.5 gallons/hour at 210 amps DC, 25V, 100% duty cycle. Visual fuel level gauge on both sides of unit.
  • Rugged Reliability
    • Welding and AC Generator Outputs Rated at 104°F (40°C).


  • Stick
  • Flux-core
  • MIG
  • TIG

Shop General Air Service & Supply for all your Engine Drive needs!

Extra Information

Lincoln Electric
